Insulating Glass Description:

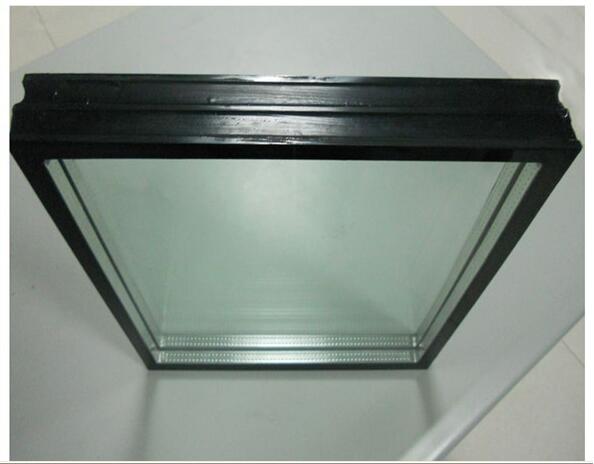

Insulated glass is a new heat and noise insulation building material which has other many features- energy saving, safety, anti-fogging, etc. Insulated Glass is hermetically sealed combination of two or more pieces of glass separated by a dry air-space. The space itself can be filled with dehydrated air, or with a special gas. Insulated glass is mainly used in building curtain wall, window, ceiling, and so on.

For ease of description the surfaces of a double paneled unit are named according to the following convention: Surface #1 (facing outside), Surface #2 (inside of outside pane), Surface #3 (outside of inside pane) and Surface #4 (inside surface of inside pane). Applying the corresponding nomenclature for triple paneled units results in surfaces #1 through #6.

1.Feather :

l  Heat insulation:Heat transfer coefficient U value can be effectively reduced by insulating glass.

l  Sound proof :Normal IGU can reduce noise by 30 decibel, IGU filled with inert gas can further reduce 5 decibel.

l  Energy-saving:Low-e glass can reflect most of the heat back .So , the temperature of the house will be quite stable.

l  Anti -fog:It is  no transmitter  between two glasses and the middle of the two glass 's  air is stable.So the two glass won't  fogging.

2.Max Size: 2500mm x 3500mm (except for manual production);Min Size: 180mm x 350mm
3..Glass thickness: 5+9A+5mm; 6+12A+6mm; 6+16A+6mm;8+12A+8mm;8+16A+8mm; etc

4.Color: clear, light blue, Ford blue, dark blue, ocean blue, light gray, blue gray, light green, dark green, gold, bronze, Low-E, ultra white etc
