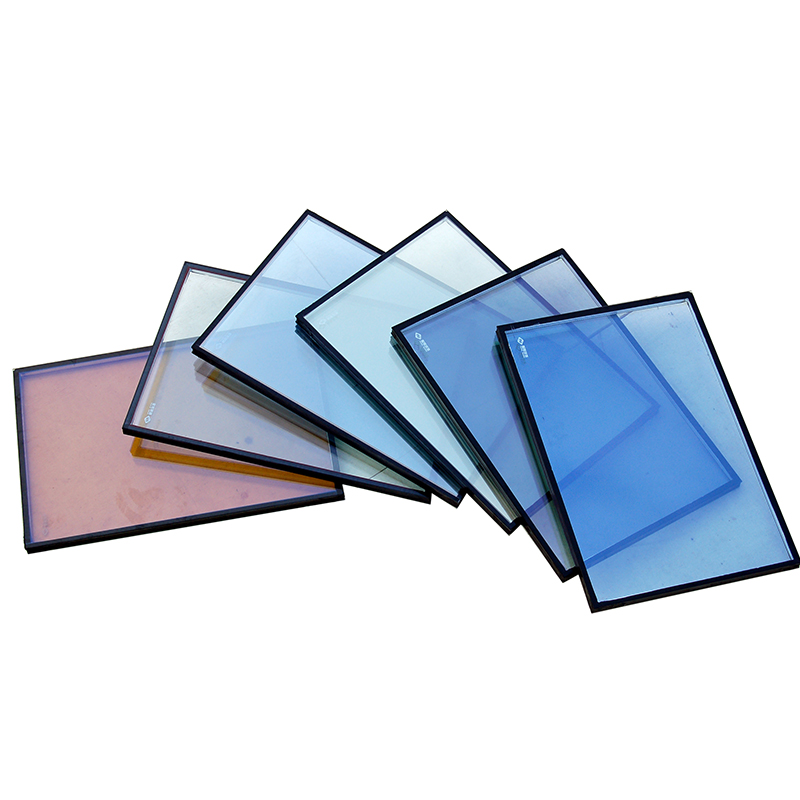

- Tinted Insulated Glass
- feature：
Insulated glass is a new heat and noise insulation building material which has other many features- energy saving, safety, anti-fogging, etc. Insulated Glass is hermetically sealed combination of two or more pieces of glass separated by a dry air-space. The space itself can be filled with dehydrated air, or with a special gas. Insulated glass is mainly used in building curtain wall, window, ceiling, and so on. For ease of description the surfaces of a double paneled unit are named according to the following convention: Surface #1 (facing outside), Surface #2 (inside of outside pane), Surface #3 (outside of inside pane) and Surface #4 (inside surface of inside pane). Applying the corresponding nomenclature for triple paneled units results in surfaces #1 through #6.
Product declare
1.Feather :
Heat insulation:Heat transfer coefficient U value can be effectively reduced by insulating glass.
Sound proof :Normal IGU can reduce noise by 30 decibel, IGU filled with inert gas can further reduce 5 decibel.
Energy-saving:Low-e glass can reflect most of the heat back .So , the temperature of the house will be quite stable.
Anti -fog:It is no transmitter between two glasses and the middle of the two glass 's air is stable.So the two glass won't fogging.
2.Max Size:
2500mm x 3500mm (except for manual production);Min Size: 180mm x 350mm
3..Glass thickness: 5+9A+5mm; 6+12A+6mm;
6+16A+6mm;8+12A+8mm;8+16A+8mm; etc
4.Color: clear, light blue, Ford blue, dark blue, ocean blue, light gray, blue gray, light green, dark green, gold, bronze, Low-E, ultra white etc
5.Air or argon space gap,6A,9A,12A,15A,16A,22A
Different edge works available:
Flat Polish Edge: The edges of the glass have been polished to a smooth shiny finish.
Application:
Custom windows and door in architecture
Custom windows for train,airplane and ship
Custom refrigerator/freezer glass door
Custom curtain wall
Quality Standards:
GB/T11944, Chinese standard.
EN 1279, European Standard.
ASTM E 2190, American standard.
