Insulating Glass Description:

Laminated glass is another type of safety glass. Laminated glass is made of two or more pieces of glass held together by Polyvinyl butyral (PVB) or resin. When broken, the layers are kept together by PVB, reducing possible injury from shards of glass.The inter-layer is generally either a PVB (poly vinyl butyral) or a CIP (resin). The glass and inter-layer are bonded together using heat and pressure in an autoclave. Virtually all glass types can be laminated and the thickness and type of inter-layer can be altered to provide solutions for security, sound reduction, solar energy control, UV control, decoration and so on.

Feather :

l       Extremely high safety: The inter-layer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the inter-layer and not scatter. In comparison with other kinds of glass, laminated glass has much higher strength to resist shock, burglary, burst and bullets.

l       Energy-saving building materials: inter-layer impedes the transmission of solar heat and reduces cooling loads.

l       Create aesthetic sense to buildings: Laminated glass with a tinted inter-layer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.

l       Sound control: the inter-layer is an effective absorb of sound.

l       Ultraviolet screening: The inter-layer filters out ultraviolet rays and prevents the furniture and curtains from fading effect.

Glass thickness:6.38mm,8.38mm,10.38mm,12.38mm,16.38mm,6.76mm,8.76mm,10.76mm,12.76mm,16.76mm,20.76mm,24.76mm.(eg:3mm+0.38+3mm,4mm+0.38+4mm,5mm+0.38+5mm;3mm+0.76+3mm, 4mm+0.76+4mm, 5mm+0.76mm+5mm, etc)

Thickness of PVB: 0.38mm,0.76mm,1.14mm,1.52mm,2.28mm,3.04mm

Thickness of EVA:0.38mm,0.76mm,1.14mm,1.52mm,2.28mm,3.04mm

Thickness of SGP:1.52mm; 3.04mm

Inter-layers:1 layer,2 layers,3 layers and more layers according to your requirements

Inter-layer film color:clear, white, gray, blue, green and pink, etc

Different edge works available:

Flat Polish Edge: The edges of the glass have been polished to a smooth shiny finish.

Application:

Custom windows and door in architecture

Custom skylights and canopies

Custom stairs, balustrades

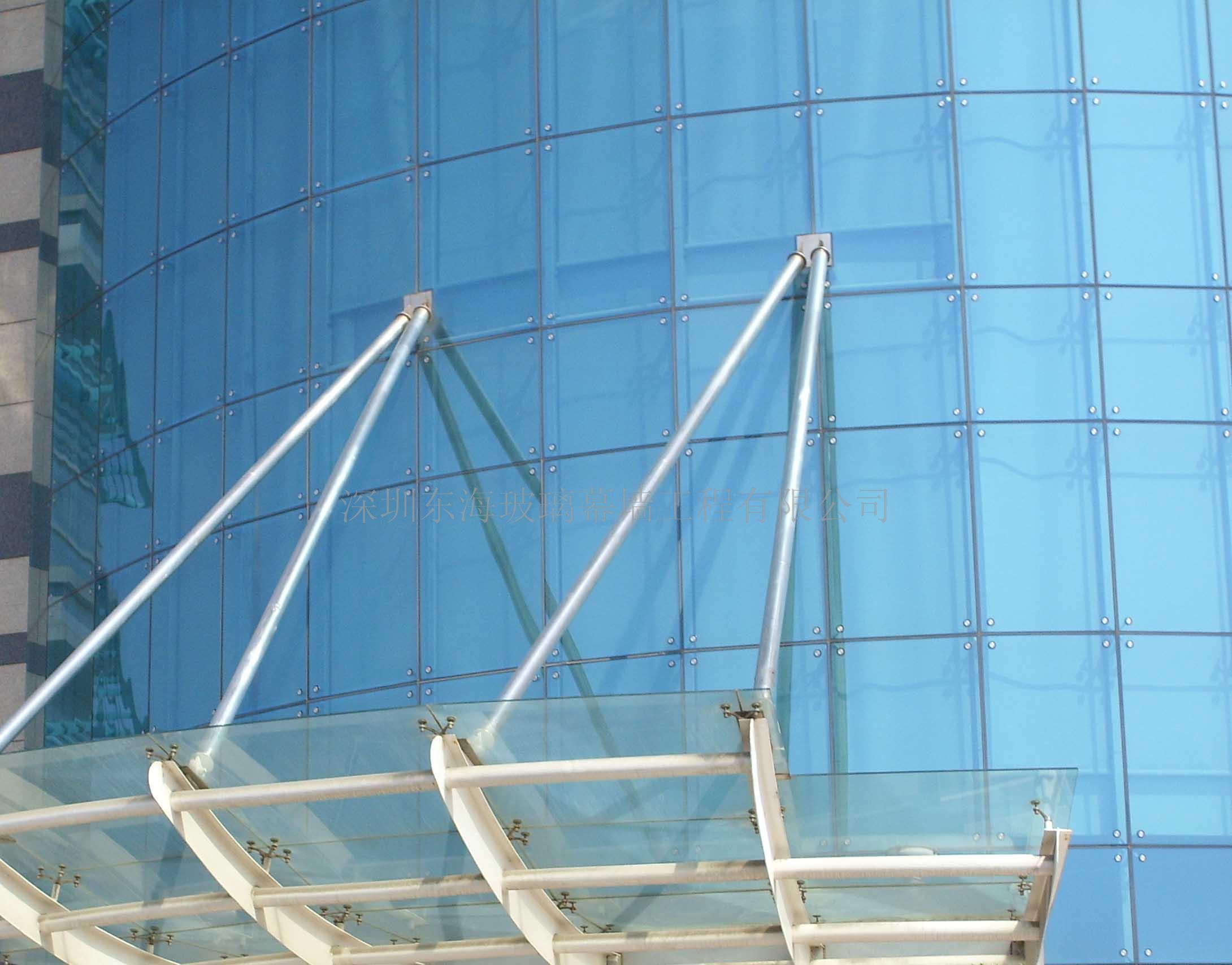

Custom curtain wall

Quality Standards:

GB/T11944, Chinese standard.
EN 1279, European Standard.
ASTM E 2190, American standard.
